The
only available manual tools with an easy to use reverse
locking system. Our exclusive "Z-Lock" reverse locking system
is designed for the most demanding applications. It provides
added protection against the loosening or unlocking of the
sealless connection in either direction.
These
tools are designed for the strapping of concrete products,
crates, lumber, metal products, palletized products as well
as other products to be unitized with steel strapping.

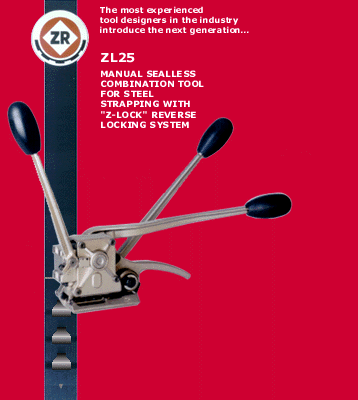

The
ZL25 series tools are the latest in innovation, specifically
designed for use with high tensile steel strapping
(of up to 156,000 psi / 1100 N/mm2) and may also
be used with regular duty strapping for much improved durability.
For use with strapping sizes from 1/2" x .015" (13 mm x
0.38 mm) to 3/4" x .025" (19 mm x 0.635 mm).
The
proven patented design provides much improved seal joint
efficiency, while at the same time requiring 30 to 50 %
less effort compared with other tools in its category.
With
the fewest individual parts and components, less maintenance
and repair is required compared with other tools in its
category.
Replacement
of parts is very simple and it takes only a few minutes
to replace the feedwheel, gripper, knife, punch or die.
Manufactured
from only the most durable materials, this tool provides
unsurpassed reliability.
We invite you to test
and compare...price, value, quality and durability.
We are sure you will choose the ZL25.
TECHNICAL
SPECIFICATIONS
| Model
Number |
Strap
Width |
Strap
Thickness |
| ZL25-1 |
1/2"
(13 mm) |
.015" - .025" (0.38 mm - 0.635 mm) |
| ZL25-2 |
5/8"
(16 mm) |
.015"
- .025" (0.38 mm - 0.635 mm) |
| ZL25-3 |
3/4"
(19 mm) |
.015" - .025" (0.38
mm - 0.635 mm)
|
| Weight |
10.6
lbs (4.8 kg) |
| Base
Length |
4.2"
(105 mm) |
| Base
Width |
2.4" (60 mm) |
| Height |
4.2"
(105 mm) |
|
